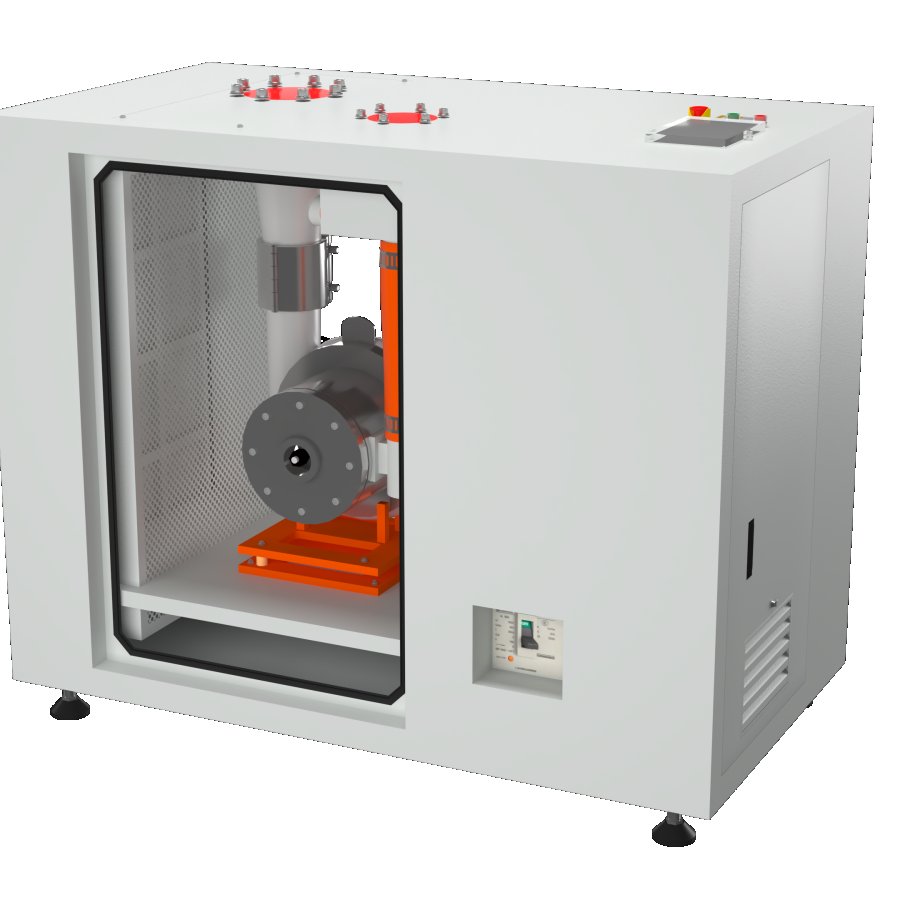

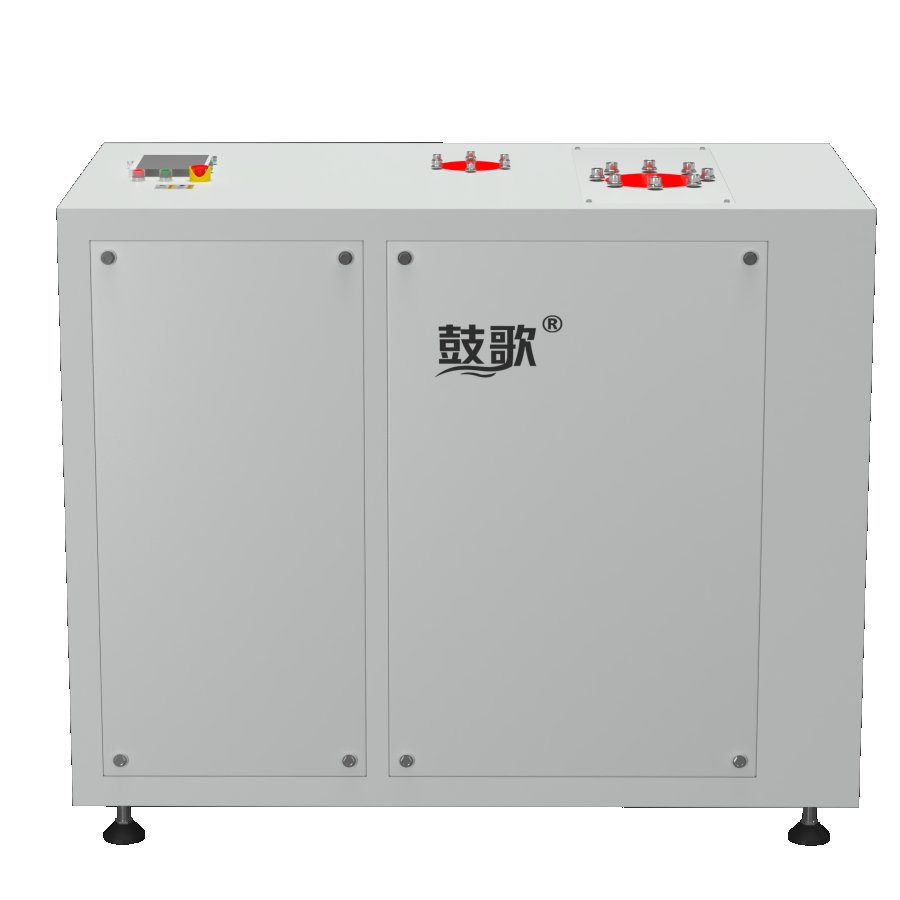

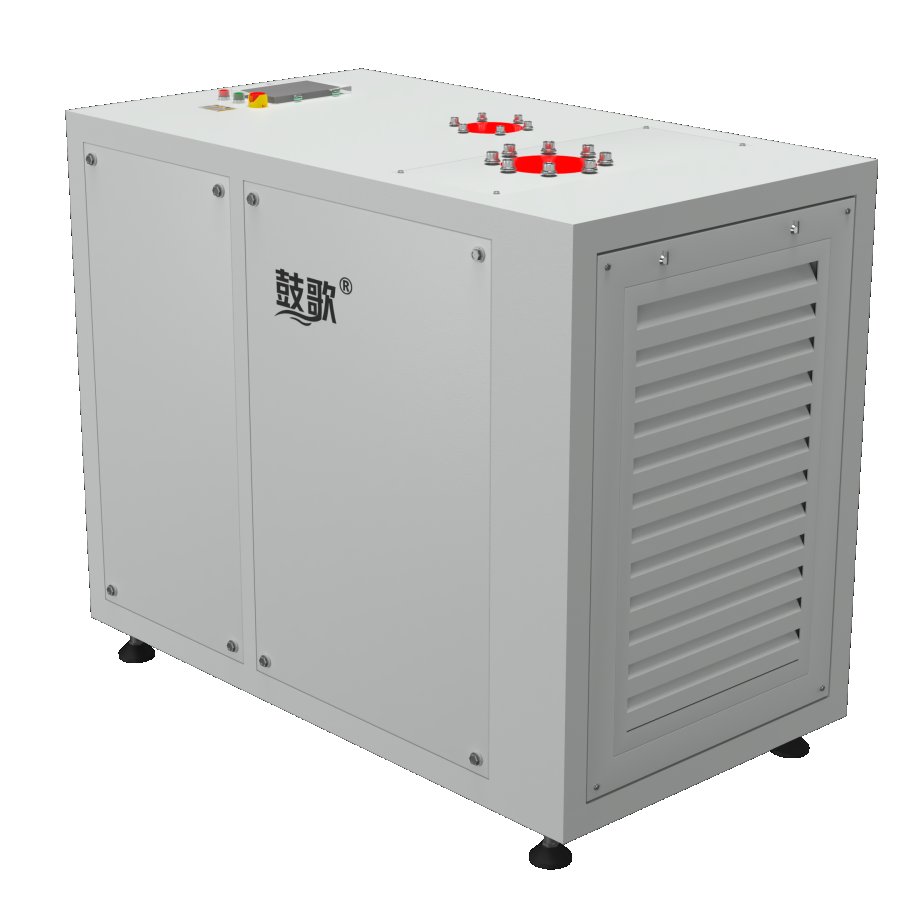

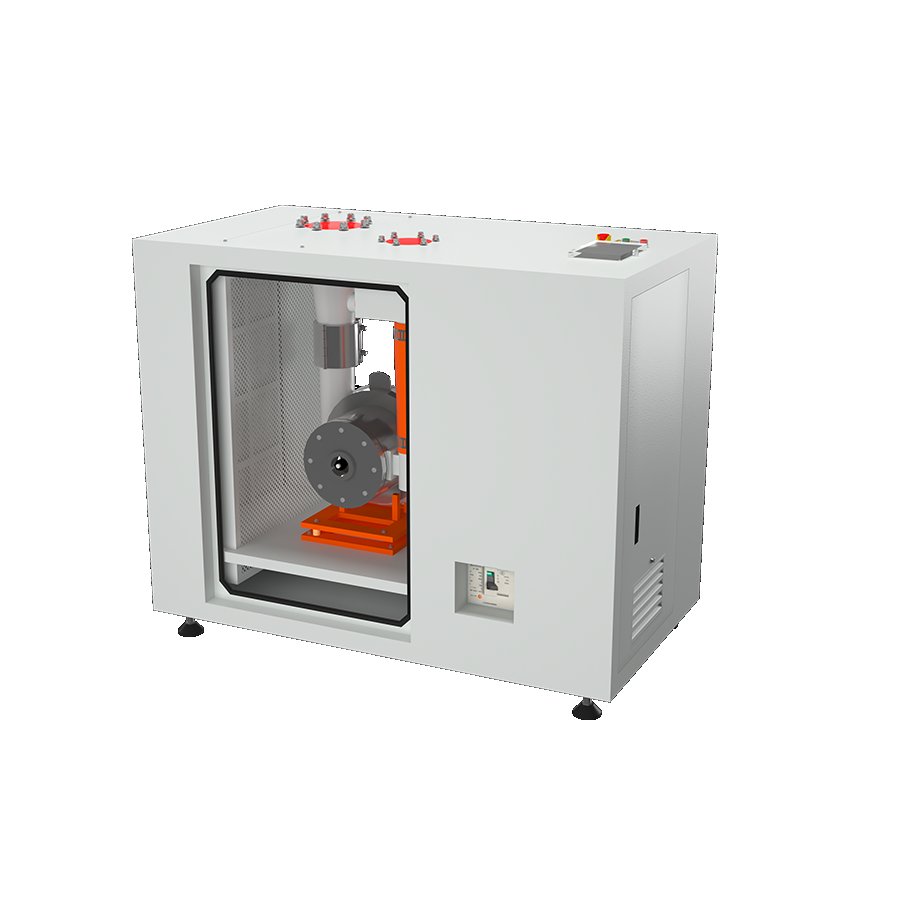

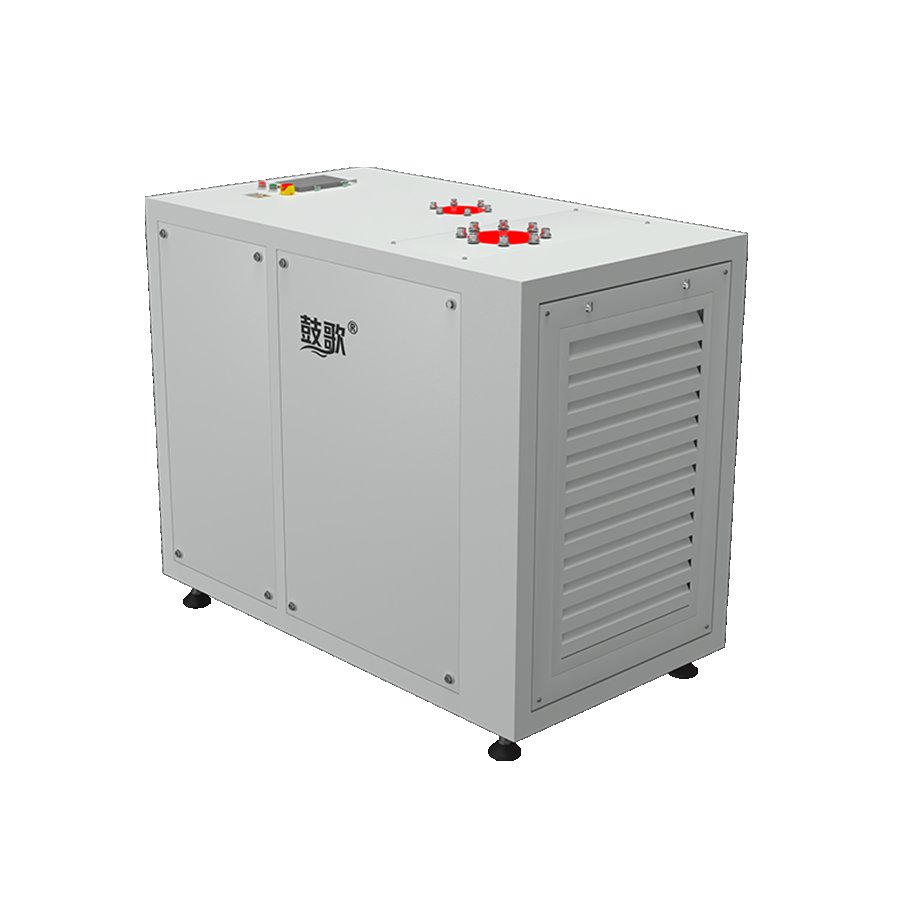

Air Foil Turbo Blower

Product Description:

The Air Foil Bearing Turbine Blower is a high-performance,energy-efficient blower designed for industrial applications requiring high-pressure air or gas delivery.Unlike conventional blowers that rely on mechanical bearings,this blower features an air foil bearing supported by a thin film of air,eliminating contact and reducing friction.This innovative design minimizes wear and extends the life of the blower,making it highly reliable and easy to maintain.

The Turbine Blower operates efficiently at varying flow rates,with consistent performance and low energy consumption.It is ideal for applications such as wastewater treatment,pneumatic conveying and industrial air supply where precision and energy conservation are critical.Its compact,oil-free operation also makes it a more environmentally friendly choice,providing cleaner, quieter performance.

Share To

Inquire now

Add to Inquiry

Advantages
Working Principle
Technical Specification
Return of investment Period
Production Center
Application
Product Parameters
Leave a Message

Advantages

High effciency
Low Noise
Oil free
Low Maintainence

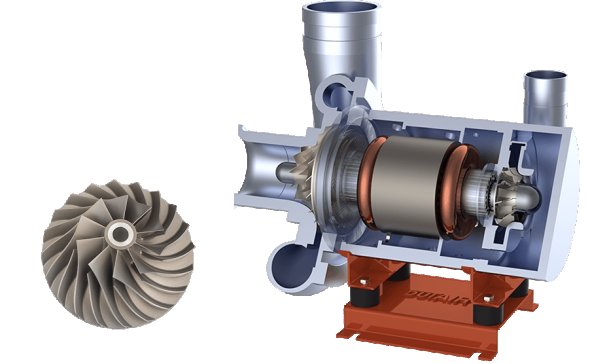

Working Principle

Energy consumption is the major operating cost for any blower. The GGA Series Turbo Blower helps you minimize energy use and operating expenses through its advanced air foil bearing and high-speed motor technology.

Designed for oil-free, maintenance-friendly performance, the GGA Series ensures stable operation, long service life, and low noise levels. Its compact structure and intelligent control system make it ideal for a wide range of industrial and environmental applications.

With various models available, the GGA Series provides the optimal balance of energy efficiency, reliability, and performance — delivering real savings and long-term value for every project.

Technical Specification

Capacity

2.2m3/min-328m3/min
Working Pressure

15kpa-120kpa
Installed Motor Power

2.2kw-300kw

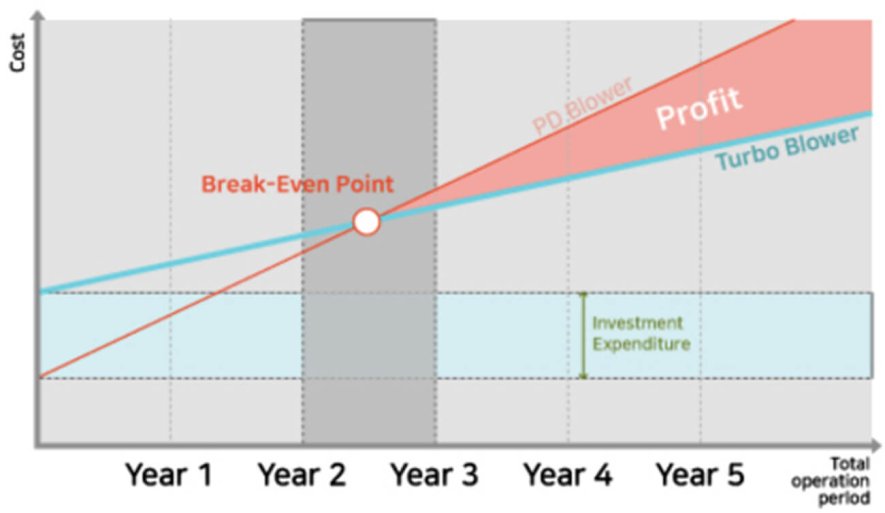

Return of investment Period

The Break-Even Point May Vary Depending on the Applied Mode

Impressive Return of Investment Period

- Up to 40% of power cost can be saved and typical return on investment period is 2-3 years.

- The longer turbo blower is used, the more savings can be realized.

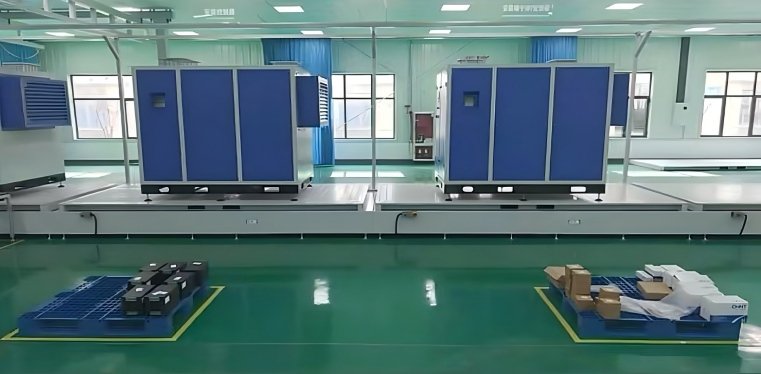

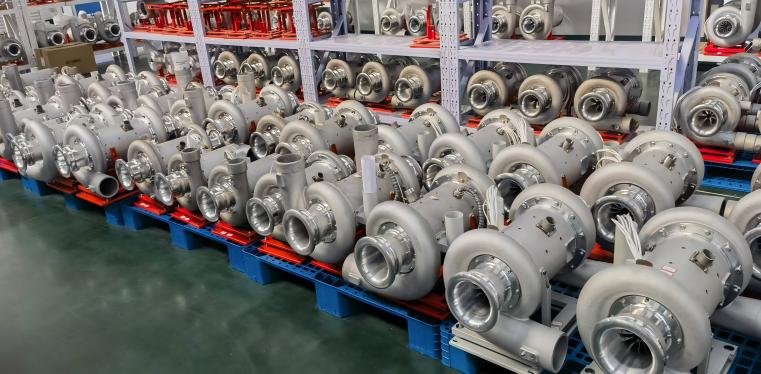

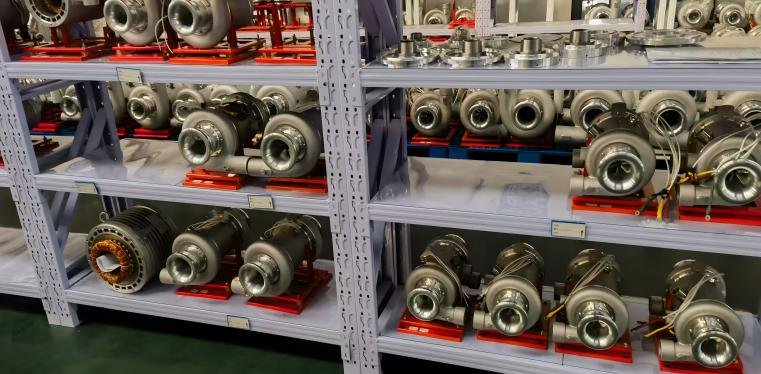

Production Center

Automated Machining, Quality-Assured

We are equipped with advanced automated machining equipment to ensure high precision and stable quality. Our workshop combines rough machining, precision machining, assembly, and warehousing in one facility, allowing efficient production and strict quality control. Key components are produced in-house and tested to ensure reliable performance and fast delivery.
PRODUCTION CENTER
PRODUCTION CENTER
PRODUCTION CENTER

APPLICATION

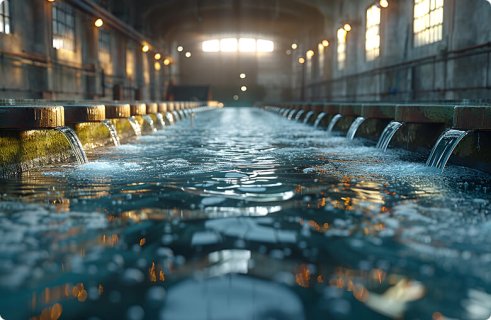

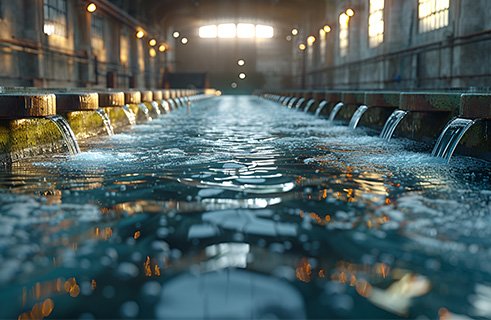

Water

- Aeration in wastewater treatment system

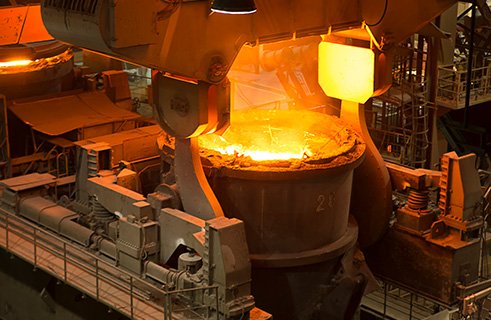

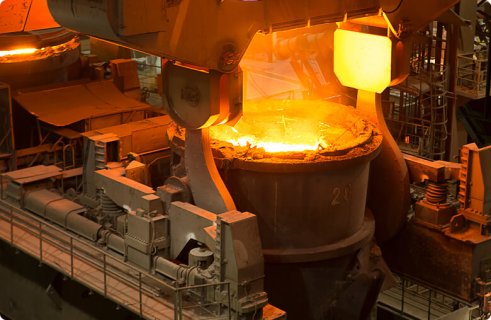

Steel Mill

- Furnace combustion
- Metal Refining

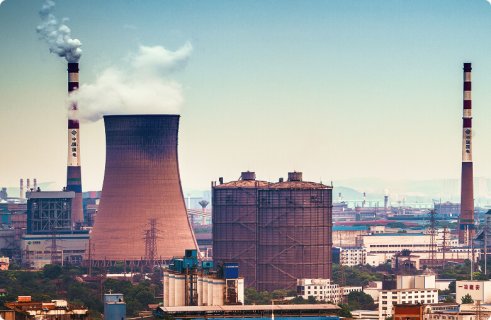

Power Plants

- Flue Gas
- Circulating Fluidized Bed Combustion

Petrochemical & Refining

- Sulfur Recovery Unit

Industrial

- Air Knife system
- Fermentation
- Pneumatic Conveyor System
- Drying

Product Parameters

Model	Suction Flow(m³/min)	Pressure(Kpa)	Motor Power(kw)
GGA2.2	2.3	40	2.2
GGA3.7	3.5	40	3.7
GGA5.5	5.3-9	15-50	5.5
GGA7.5	6-19.5	15-60	7.5
GGA11	6.5-25	15-80	11
GGA15	10-38	15-80	15
GGA22	17-53	15-80	22
GGA30	22-75	15-80	30
GGA37	19-90	15-120	37
GGA45	23-108	15-120	45
GGA55	28-138	15-120	55
GGA75	37-165	15-120	75
GGA90	47-120	50-120	90
GGA110	57-150	50-120	110
GGA132	67-170	50-120	132
GGA150	77-200	50-120	150
GGA220	114-242	50-120	220
GGA300	145-328	50-120	300
