Roots Blower
Roots Blower

[ Roots Blower ]

Roots Blower

Product Description:

  • PRESSURE

    14.7KPA-98KPA

  • AIR FLOW

    0.65M3/MIN-166M3/MIN

  • POWER

    0.75KW-335KW

Share To

Inquire now
Add to Inquiry

Advantages

  • Stable Airflow

    As a positive displacement blower, the Roots blower delivers a constant air volume regardless of pressure changes, ensuring steady and reliable performance.

  • Simple Structure & Easy Maintenance

    The design is straightforward — with two synchronized rotors and no internal contact — resulting in easy operation, long service life, and low maintenance requirements.

  • Oil-Free Air

    There is no lubrication inside the casing;the airflow is completely oil-free, making it suitable for applications requiring clean air such as wastewater treatment and pneumatic conveying.

  • High Efficiency & Strong Durability

    The precision-machined rotors ensure high volumetric efficiency and smooth rotation. Robust construction guarantees stable operation even under continuous duty.

  • Low Noise & Low Vibration

    Especially with the three-lobe design, airflow pulsation and vibration are greatly reduced, resulting in quieter operation.

Working Principle

Our Roots blower is a type of positive displacement blower, which operates by using a pair of intermeshing rotors (impellers) rotating inside a casing to convey gas. A certain clearance is maintained between the two rotors and between the rotors and the casing, ensuring no contact during operation. The rotors’ relative positions are kept precisely synchronized through timing gears.

As the rotors rotate, the volume on the inlet side increases, drawing air into the casing and filling the chamber. With continued rotation, the air is trapped in the space between the rotor and the casing and carried to the discharge side. At the discharge port, where the pressure is higher, the air is pushed out, completing one cycle of continuous gas delivery.

As an improved version of the traditional 2-lobes Roots blower, 3-lobes Roots blower isdesigned for smoother airflow, lower noise, and higher efficiency.

Production Center

  • Automated Machining, Quality-Assured

    We are equipped with advanced automated machining equipment to ensure high precision and stable quality. Our workshop combines rough machining, precision machining, assembly, and warehousing in one facility, allowing efficient production and strict quality control. Key components are produced in-house and tested to ensure reliable performance and fast delivery.

  • PRODUCTION CENTER

  • PRODUCTION CENTER

  • PRODUCTION CENTER

APPLICATION

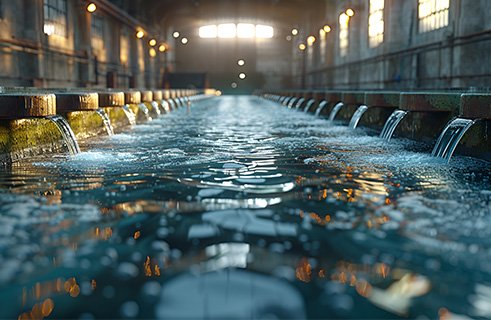

Wastewater Treatment (Aeration)

  • - Supplying air to aeration tanks, oxidation ditches, and biological treatment systems to support microorganism growth.

Pneumatic Conveying Systems

  • - Providing conveying air for transporting powders, grains, cement, plastic pellets, and other bulk materials through pipelines.

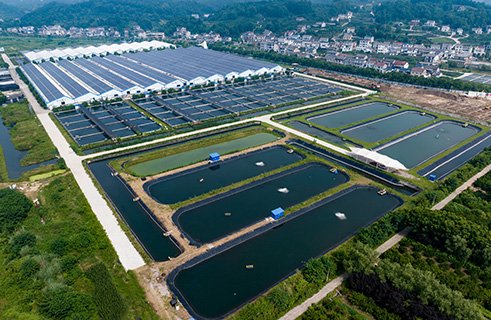

Aquaculture & Fish Farming

  • - Delivering oxygen to fish ponds and aeration systems to maintain suitable dissolved oxygen levels.

Combustion Air Supply

  • - Supplying combustion air for furnaces, kilns, boilers, and incinerators to improve combustion efficiency.

Industrial Processes

  • - Used in air separation, electroplating, vacuum packaging, gas boosting, and desulfurization systems.

Power Generation & Biogas Plants

  • - Supplying air for desulfurization, gas mixing, and sludge drying in biomass or biogas projects.

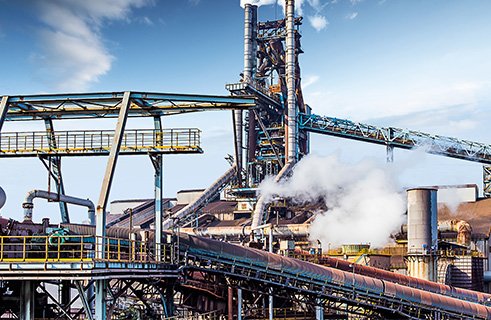

Cement, Chemical, and Steel Industries

  • - Used for material conveying, dust collection, cooling, and air agitation applications.
